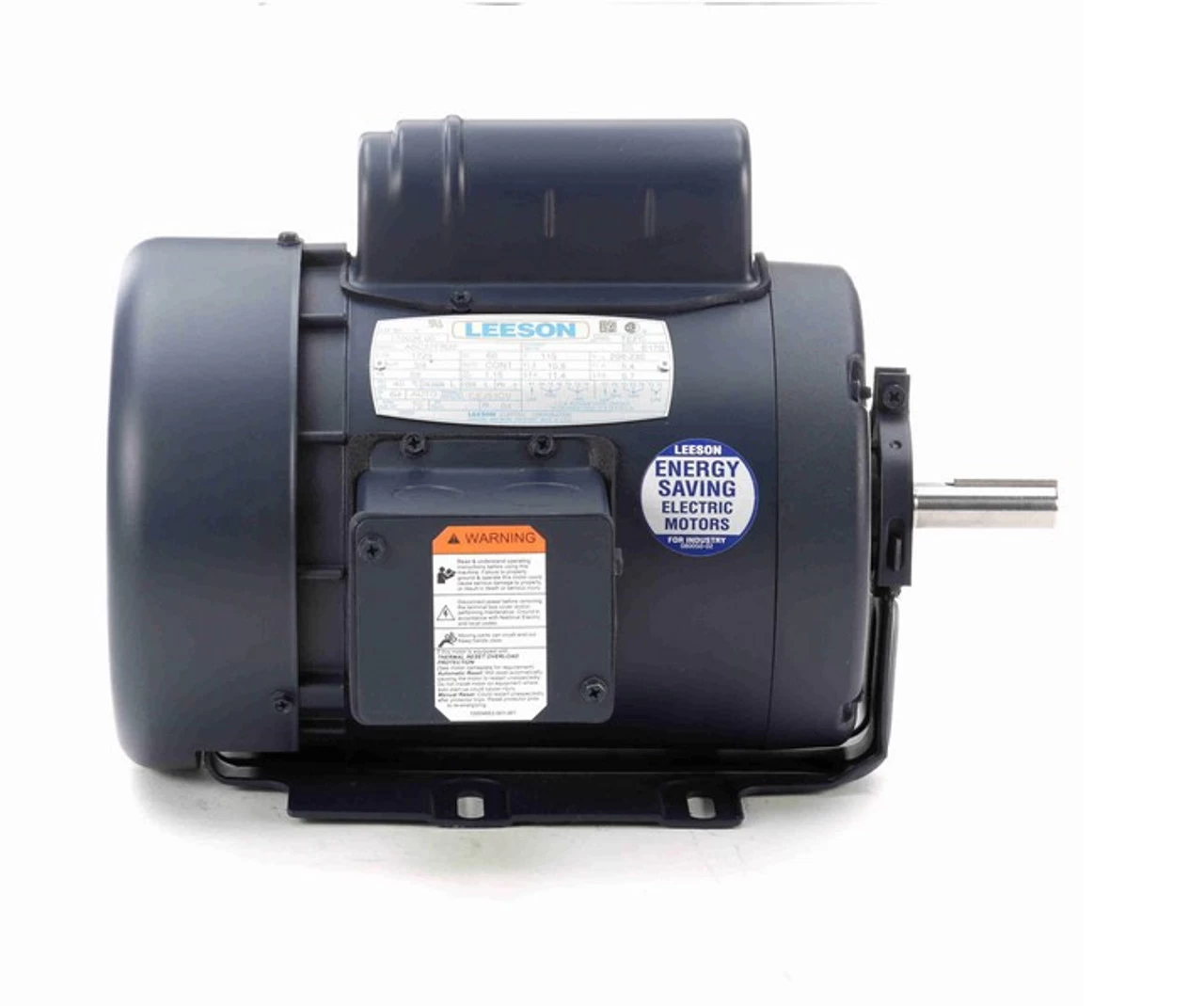

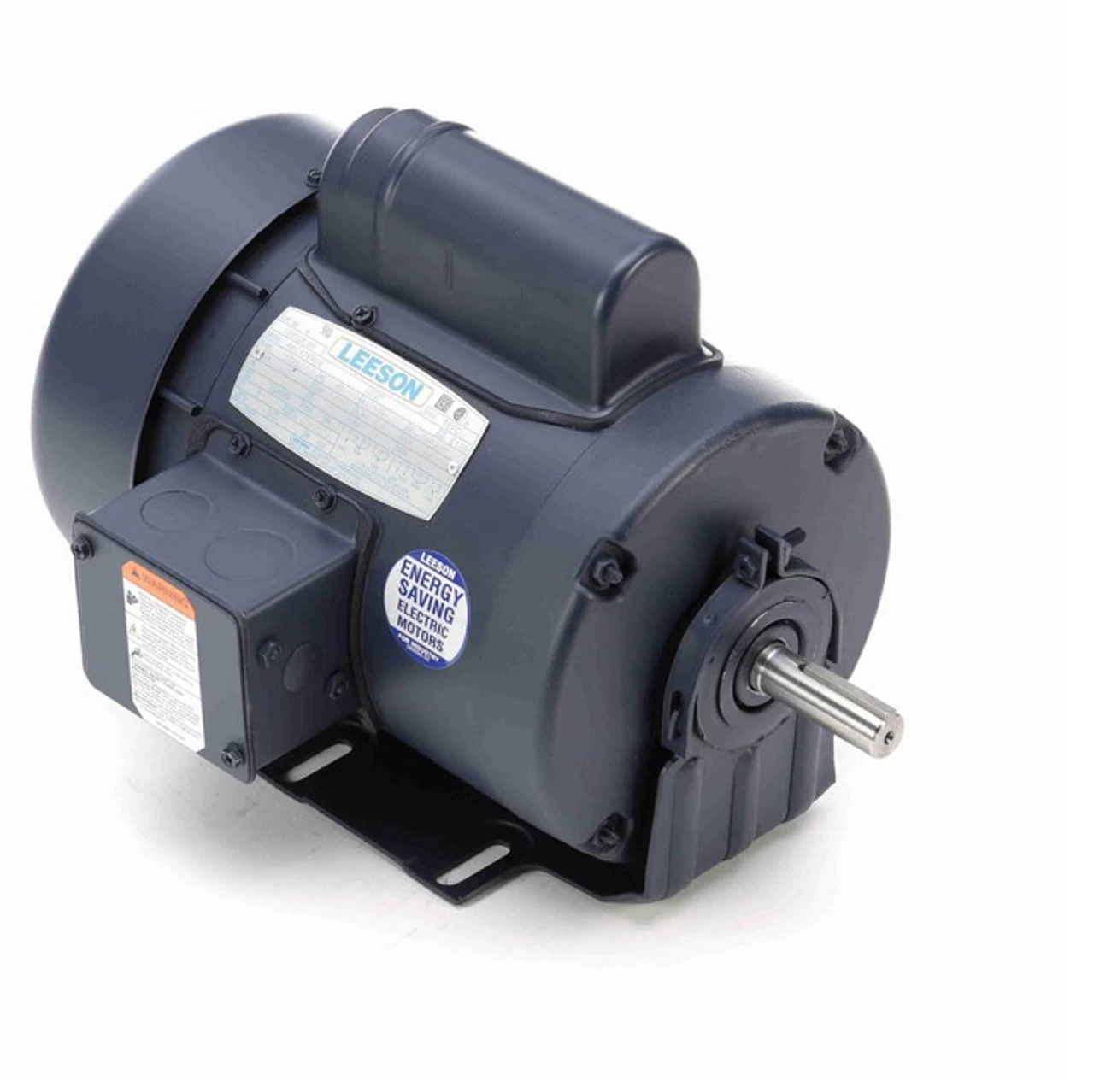

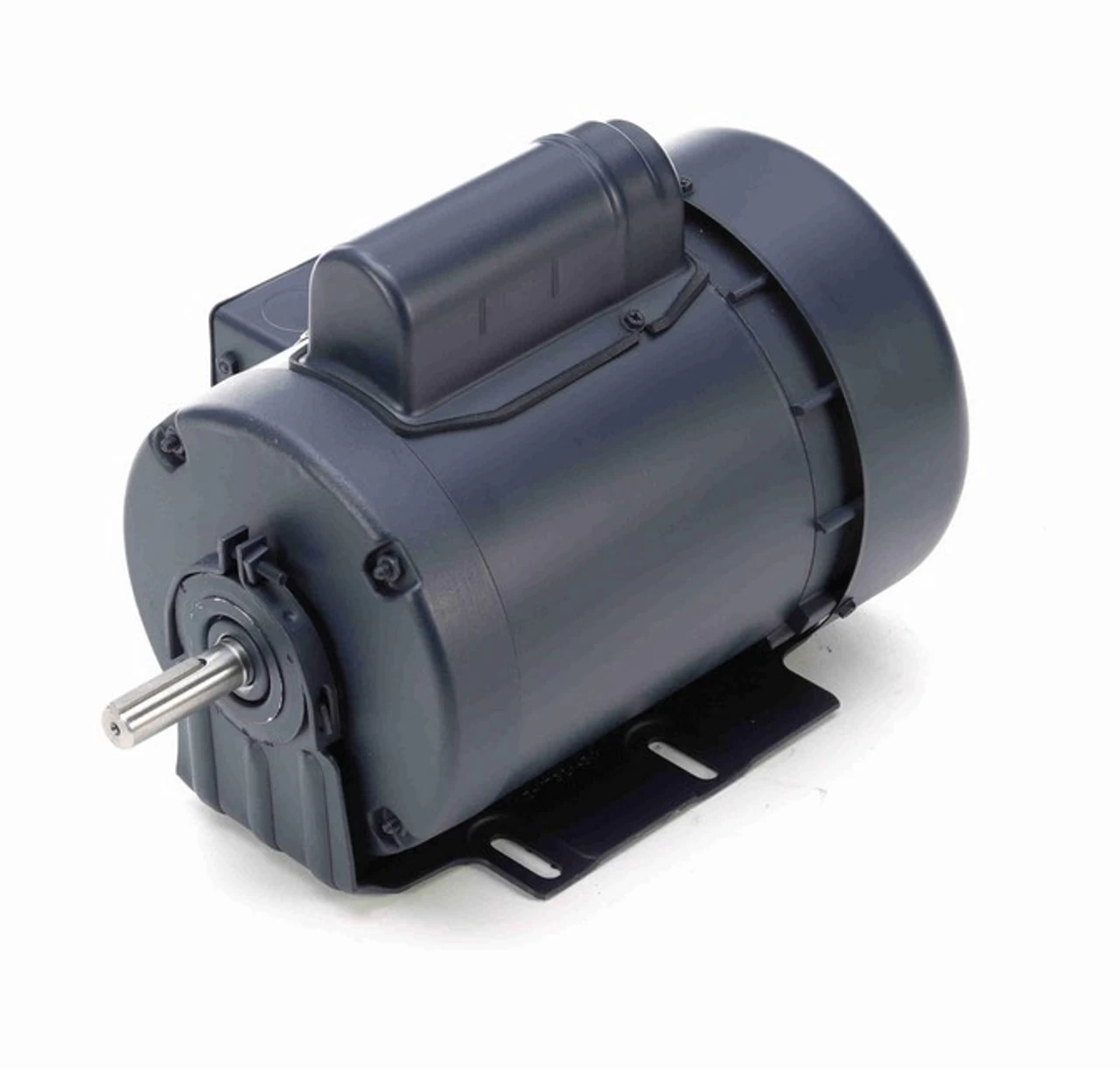

110026.00 Leeson 3/4 Hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor
Original price was: $315.00.$99.99Current price is: $99.99.
- Safe Payments, Happy Customers
- 100% High-Quality Guarantee
- Superior Quality Goods
- fast shipping
- 3/4 hp 1800 RPM, 10.8/5.4 amps 115/208-230 Volts 60hz. Single Phase Capacitor Start Motor
- NEMA 56 Frame Keyed Shaft 5/8″ Diameter x 1 7/8″ long
- Service Factor: 1.15, Overload Protection = Auto
- Resilient Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.
Replaces Marathon C806, 5KC49PN0281X
