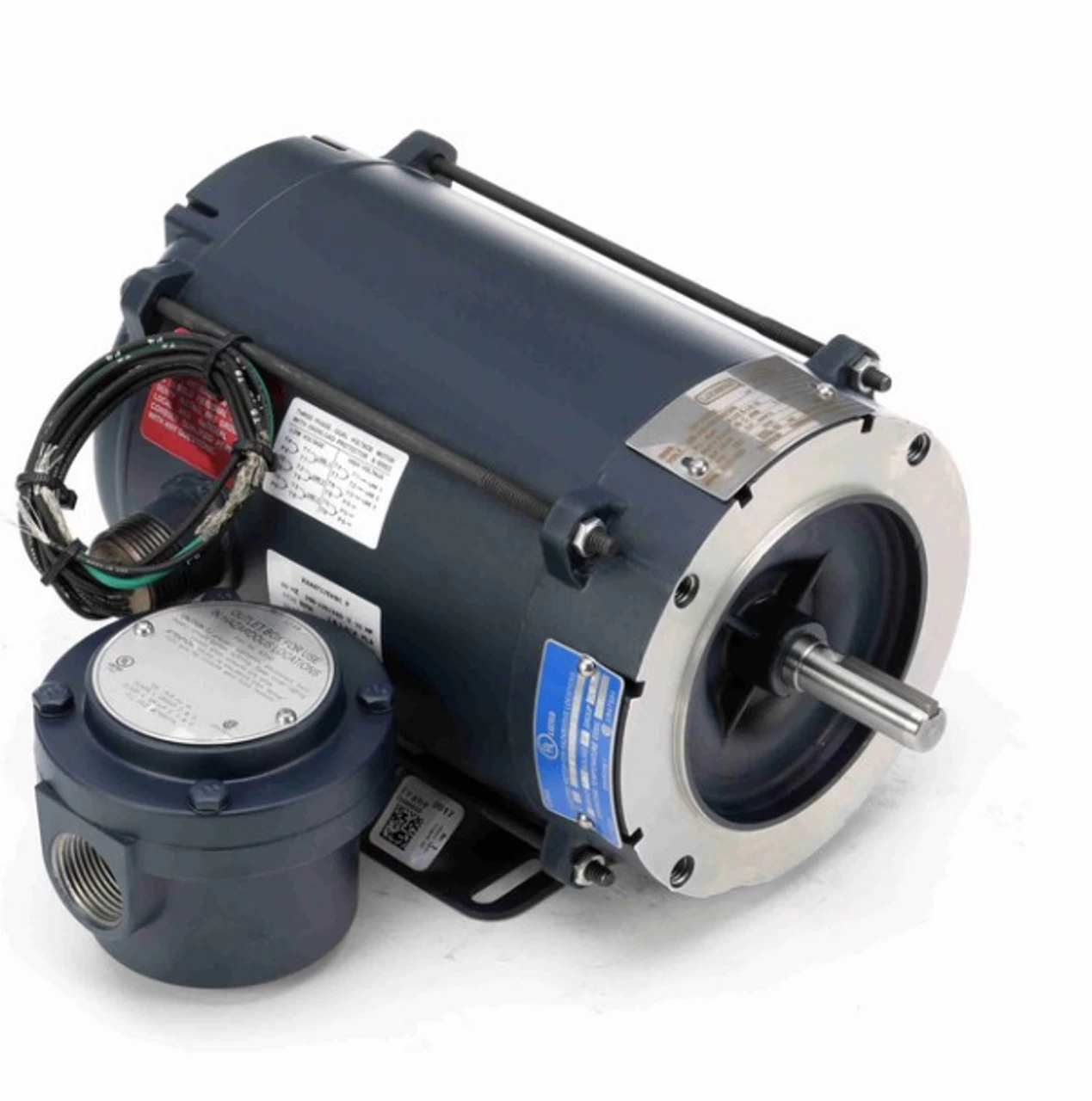

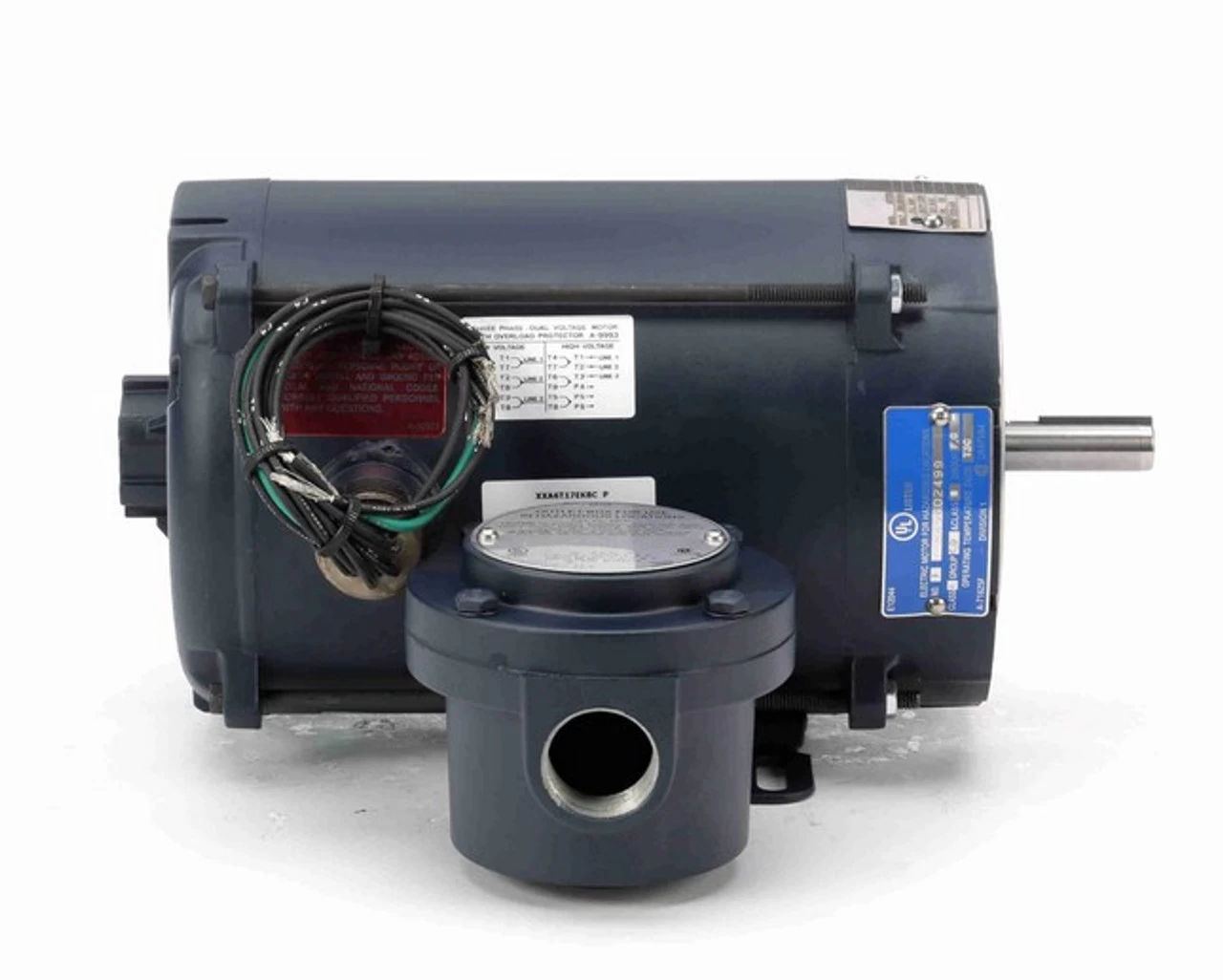

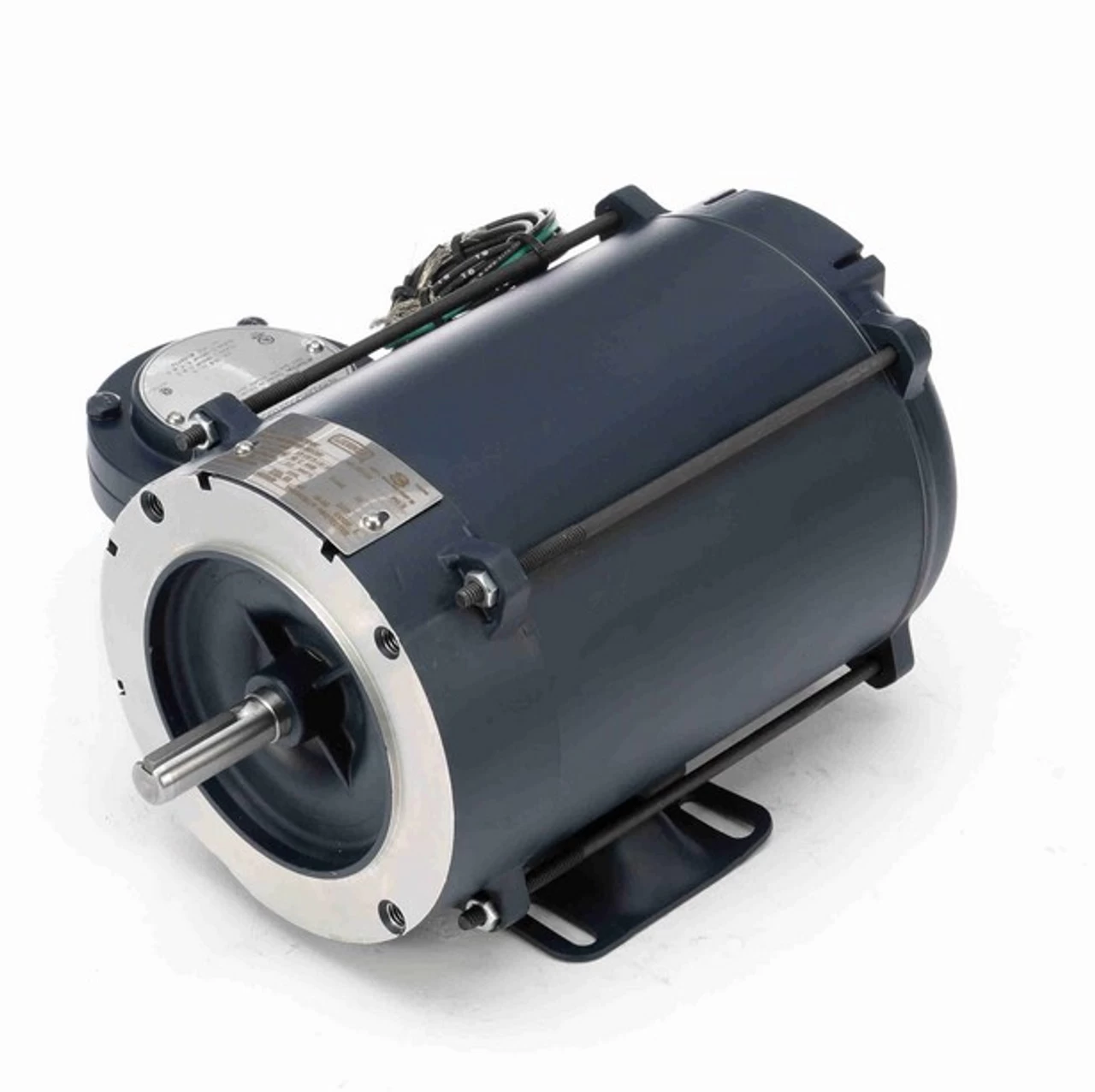

114628.00 Leeson 1/2 Hp 1800 RPM 208-230/460V 56C Frame Explosion-Proof (Rigid Base) 3-Phase Motor

114628.00 Leeson 1/2 Hp 1800 RPM 208-230/460V 56C Frame Explosion-Proof (Rigid Base) 3-Phase Motor - Image 2

114628.00 Leeson 1/2 Hp 1800 RPM 208-230/460V 56C Frame Explosion-Proof (Rigid Base) 3-Phase Motor - Image 3

114628.00 Leeson 1/2 Hp 1800 RPM 208-230/460V 56C Frame Explosion-Proof (Rigid Base) 3-Phase Motor

Original price was: $372.00.Current price is: $97.99.

SKU: ZWXLY 1698654678 Category: Leeson/Marathon Electric Motors Tag: Leeson

Safe Payments, Happy Customers
100% High-Quality Guarantee
Superior Quality Goods
fast shipping

Description
Reviews (0)

1/2 hp 1800 RPM, 1.8-1.6/0.8 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload Protection = Auto
Rigid Base, Reversible, Ball Bearings – Class B Insulation
1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 114628.00
