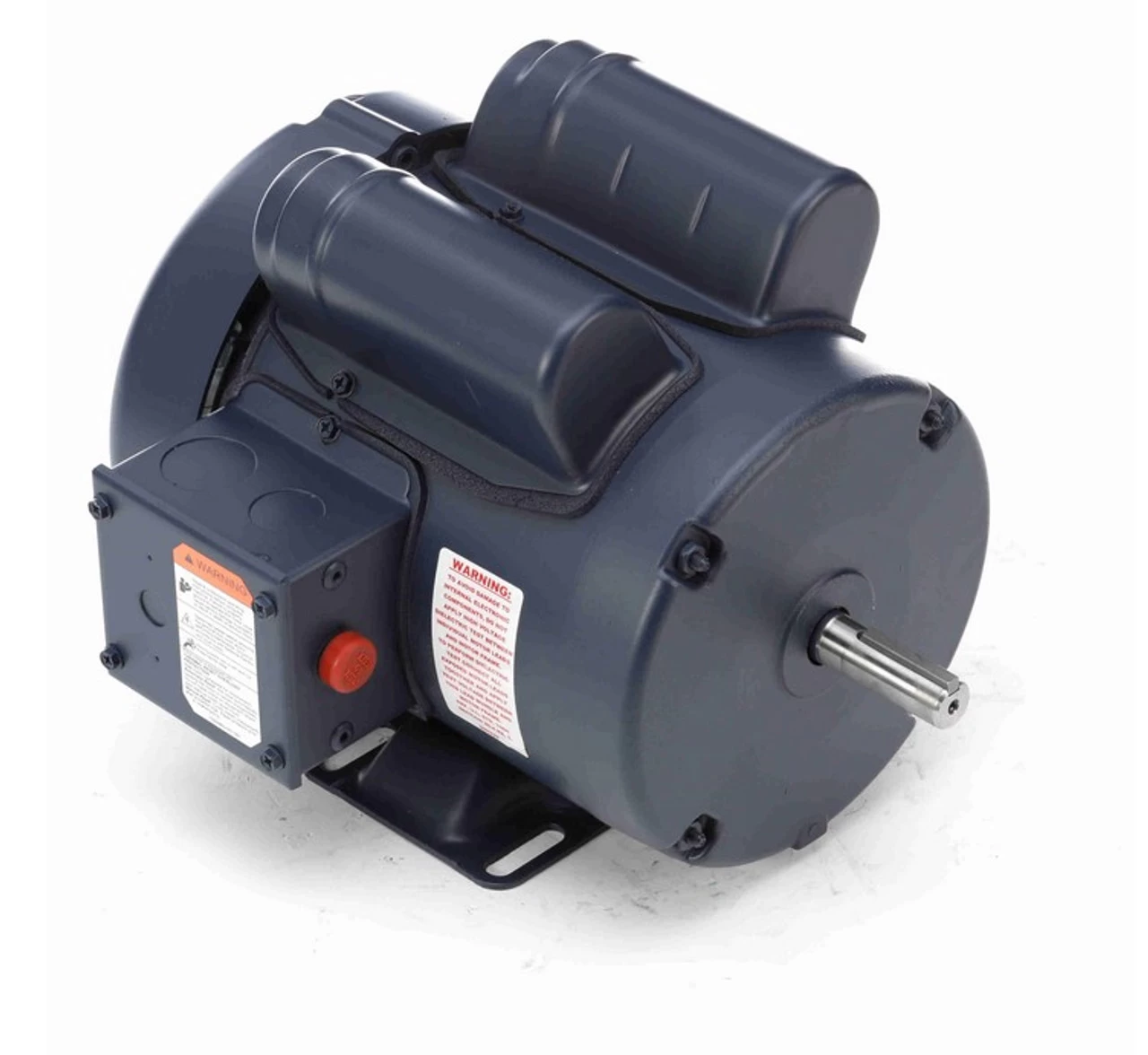

114932.00 Leeson 3/4 Hp 1800 RPM 115/208-230V 56 Frame (Rigid Base) TEFC 1-Phase Instant Reversing Motor

114932.00 Leeson 3/4 Hp 1800 RPM 115/208-230V 56 Frame (Rigid Base) TEFC 1-Phase Instant Reversing Motor - Image 2

114932.00 Leeson 3/4 Hp 1800 RPM 115/208-230V 56 Frame (Rigid Base) TEFC 1-Phase Instant Reversing Motor - Image 3

114932.00 Leeson 3/4 Hp 1800 RPM 115/208-230V 56 Frame (Rigid Base) TEFC 1-Phase Instant Reversing Motor

Original price was: $351.00.Current price is: $99.99.

SKU: ZWXLY 1698654790 Category: Leeson/Marathon Electric Motors Tag: Leeson

Safe Payments, Happy Customers
100% High-Quality Guarantee
Superior Quality Goods
fast shipping

Description
Reviews (0)

LEESON 114932.00 HAS BEEN DISCONTINUED – WITH NO CURRENT REPLACEMENT

3/4 hp 1800 RPM, 10.8/5.4 amps 115/208-230 Volts 60 Hz. Capacitor Start 1-Phase Motor
NEMA 56 Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15 Overload Protection = Manual
Rigid Base, Reversible, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

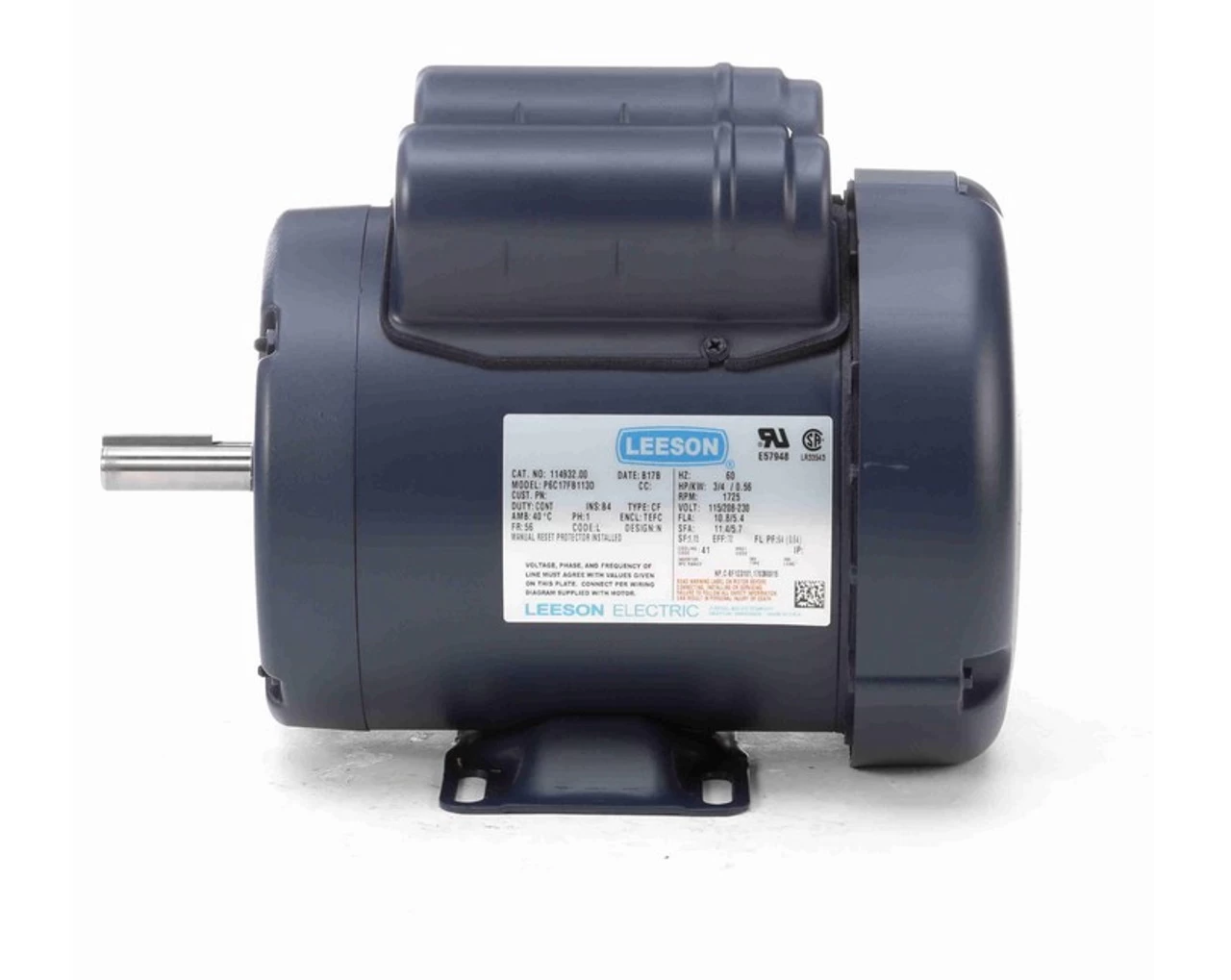

Motor designed for use on quick reversing parking gates, doors, etc, requiring higher starting torque than PSC motors. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 114932.00
