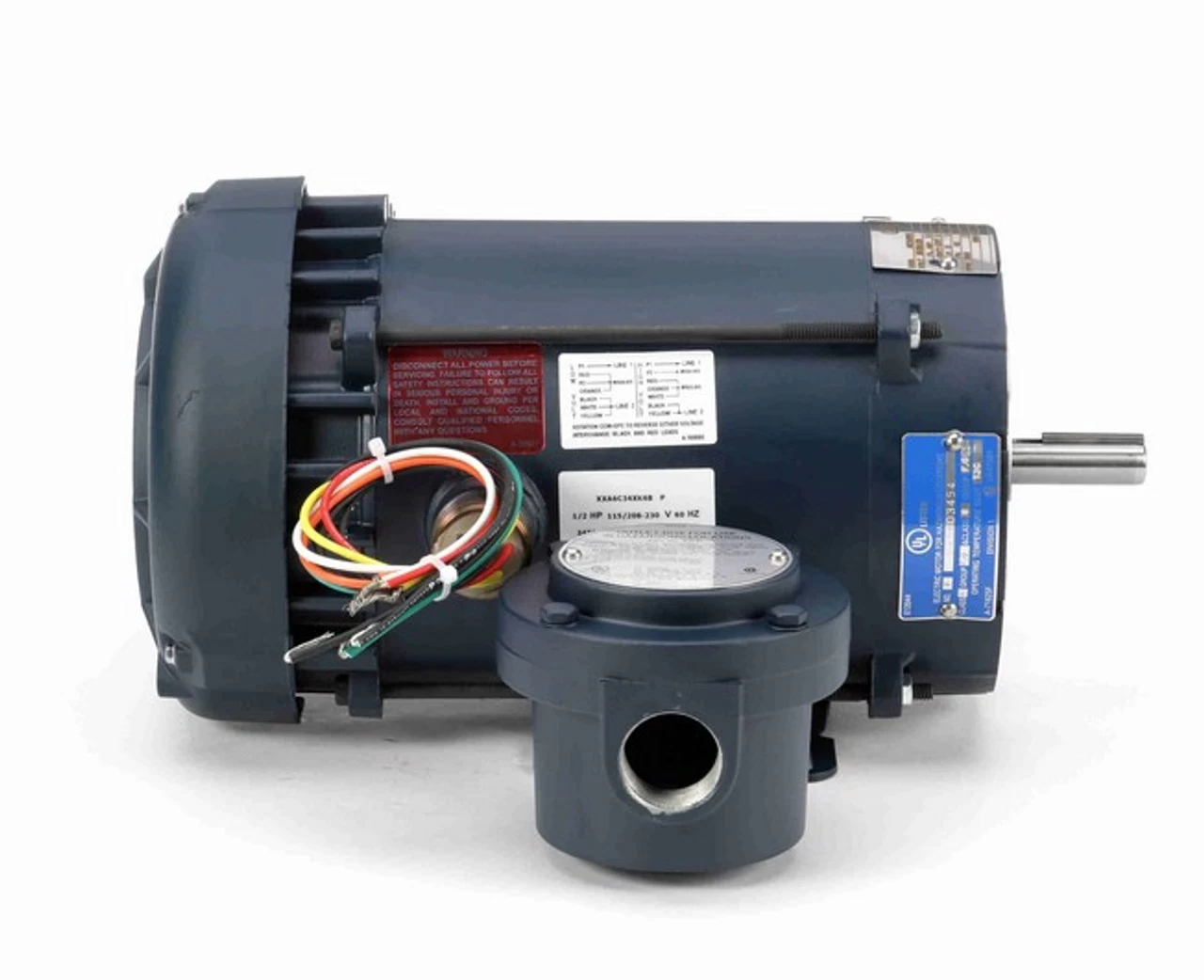

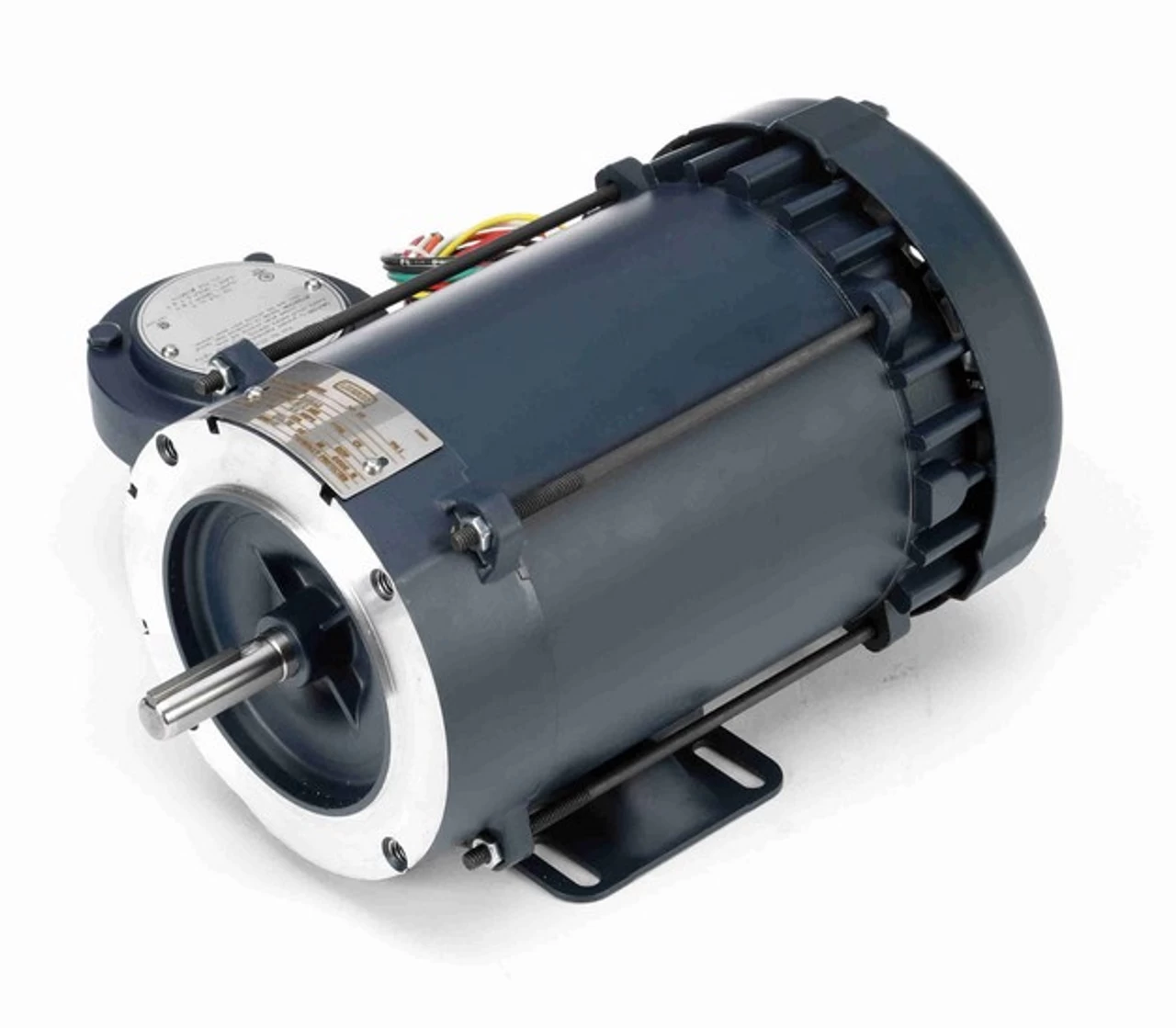

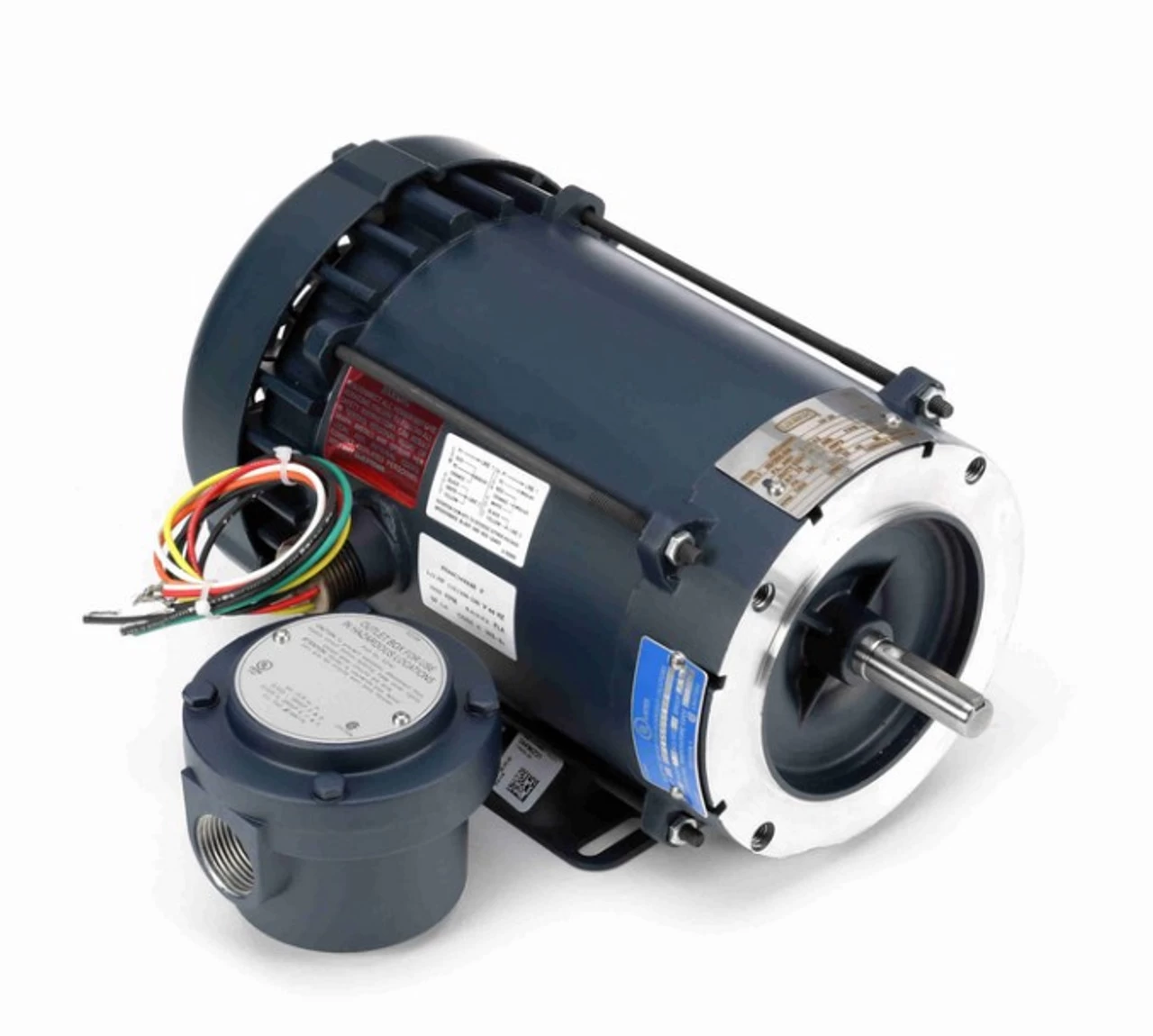

116608.00 Leeson 1/2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor

116608.00 Leeson 1/2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor - Image 2

116608.00 Leeson 1/2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor - Image 3

116608.00 Leeson 1/2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor

Original price was: $323.00.Current price is: $95.99.

SKU: ZWXLY 1698654684 Category: Leeson/Marathon Electric Motors Tag: Leeson

Safe Payments, Happy Customers
100% High-Quality Guarantee
Superior Quality Goods
fast shipping

Description
Reviews (0)

1/2 hp 3600 RPM, 8.4/4.0-4.2 amps 115/208-230 Volts 60 Hz. Capacitor Start Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload Protection = Auto
Rigid Base, Reversible, Ball Bearings – Class B Insulation
1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. EXP PROOF CL I GR C&D CL II GR F&G T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.116608.00
