Sale!

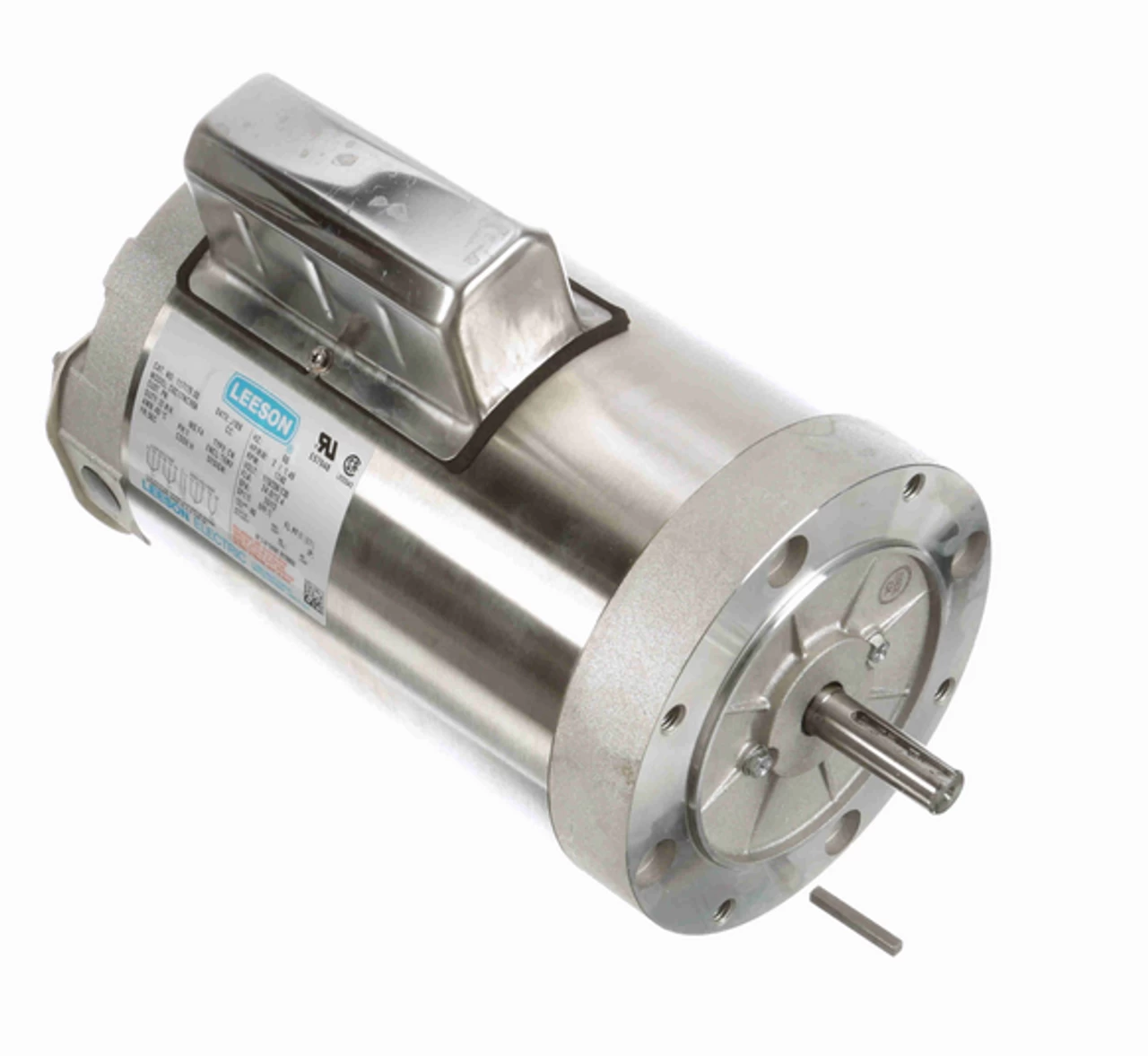

117179.00 Leeson Extreme Duck 2 Hp 1800 RPM 208-230/460V 1-Phase 56C Frame TENV (no Base) Motor

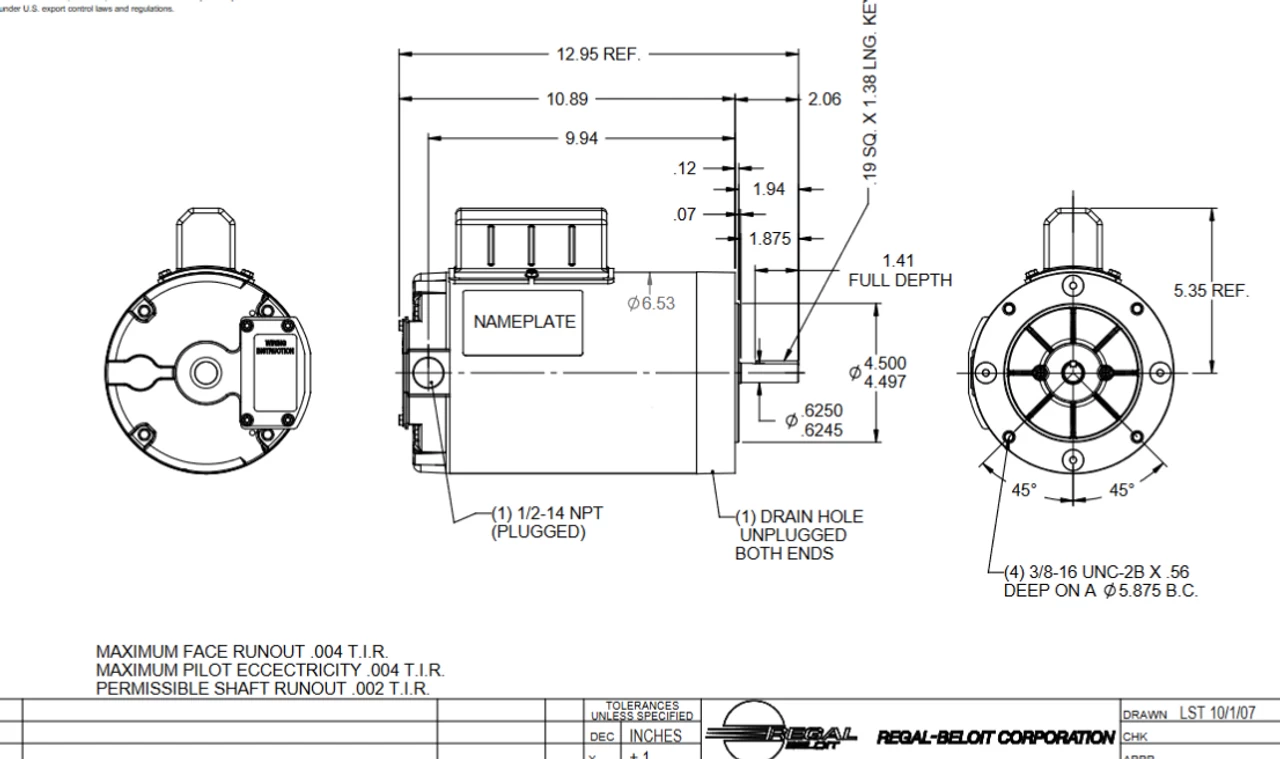

117179.00 Leeson Extreme Duck 2 Hp 1800 RPM 208-230/460V 1-Phase 56C Frame TENV (no Base) Motor - Image 2

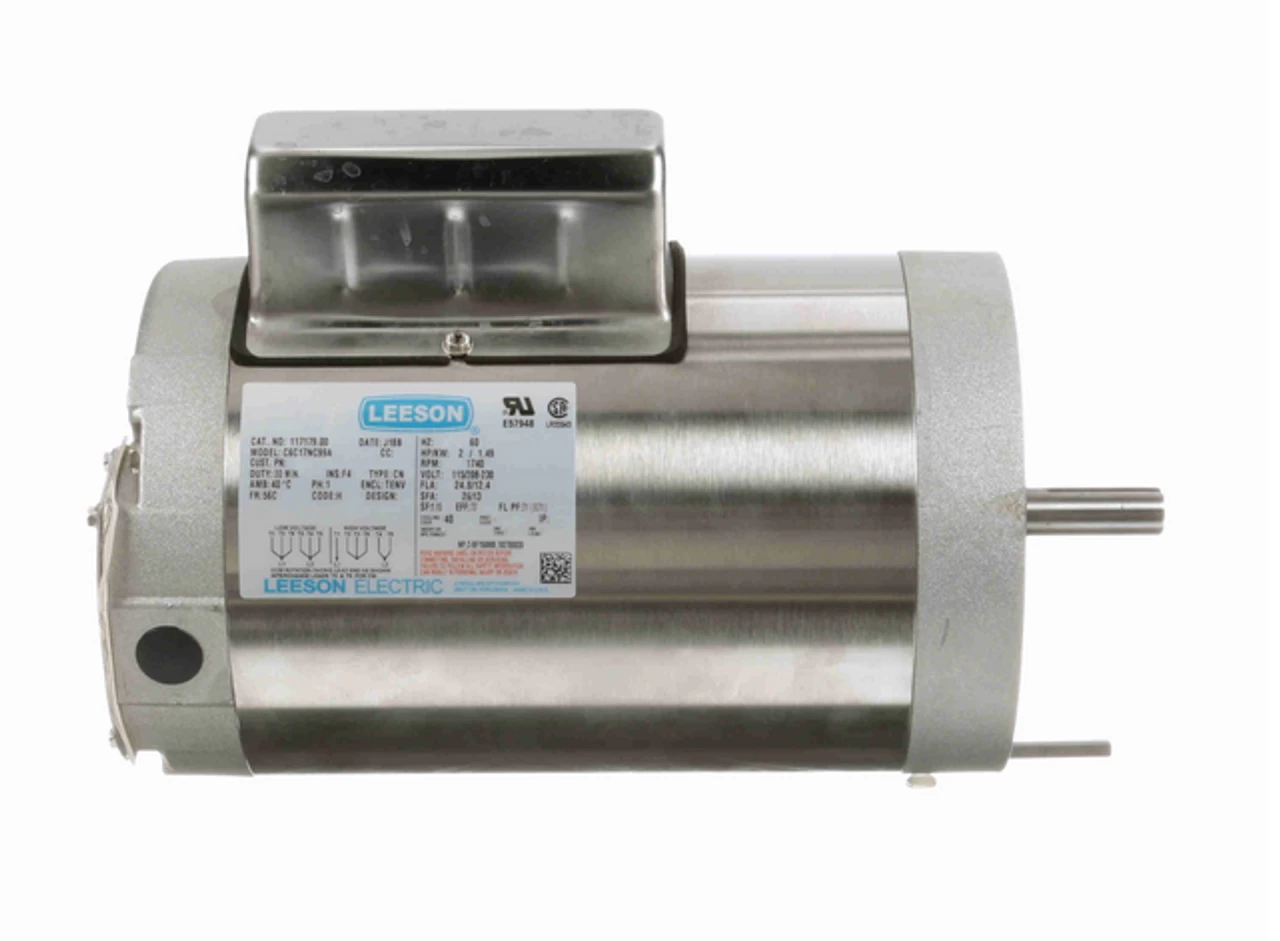

117179.00 Leeson Extreme Duck 2 Hp 1800 RPM 208-230/460V 1-Phase 56C Frame TENV (no Base) Motor - Image 3

117179.00 Leeson Extreme Duck 2 Hp 1800 RPM 208-230/460V 1-Phase 56C Frame TENV (no Base) Motor

Original price was: $342.00.Current price is: $95.99.

SKU: ZWXLY 1698655246 Category: Leeson/Marathon Electric Motors Tag: Leeson/Marathon

Safe Payments, Happy Customers
100% High-Quality Guarantee
Superior Quality Goods
fast shipping

Description
Reviews (0)

2 hp 1800 RPM, 6.0-5.8/2.9 amps 208-230/460 Volts 60 Hz. Single Phase Capacitor Start
NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload protection = None
No Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty,

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 119524.00
