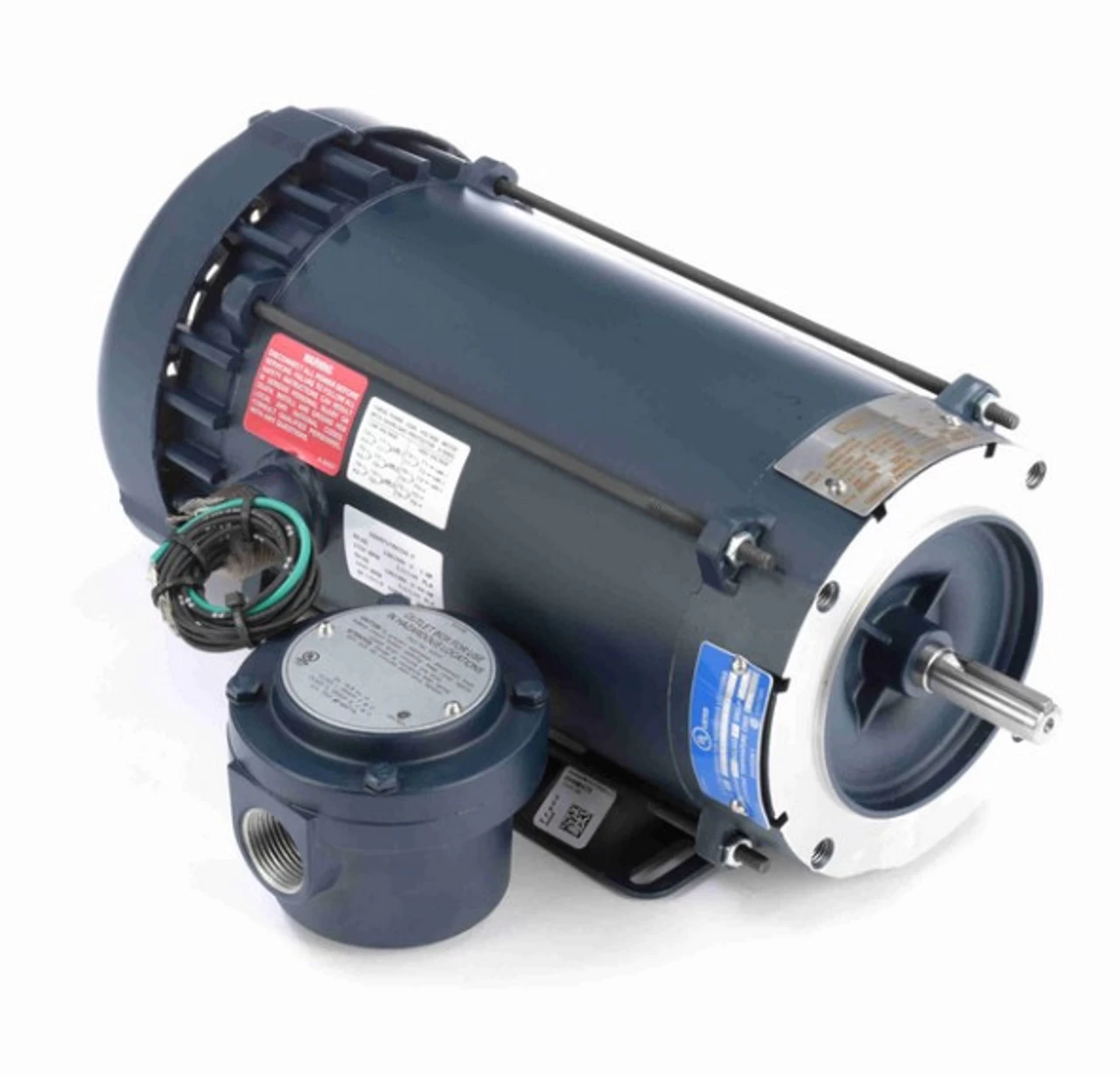

119437.00 Leeson 1 Hp 1800 RPM 230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

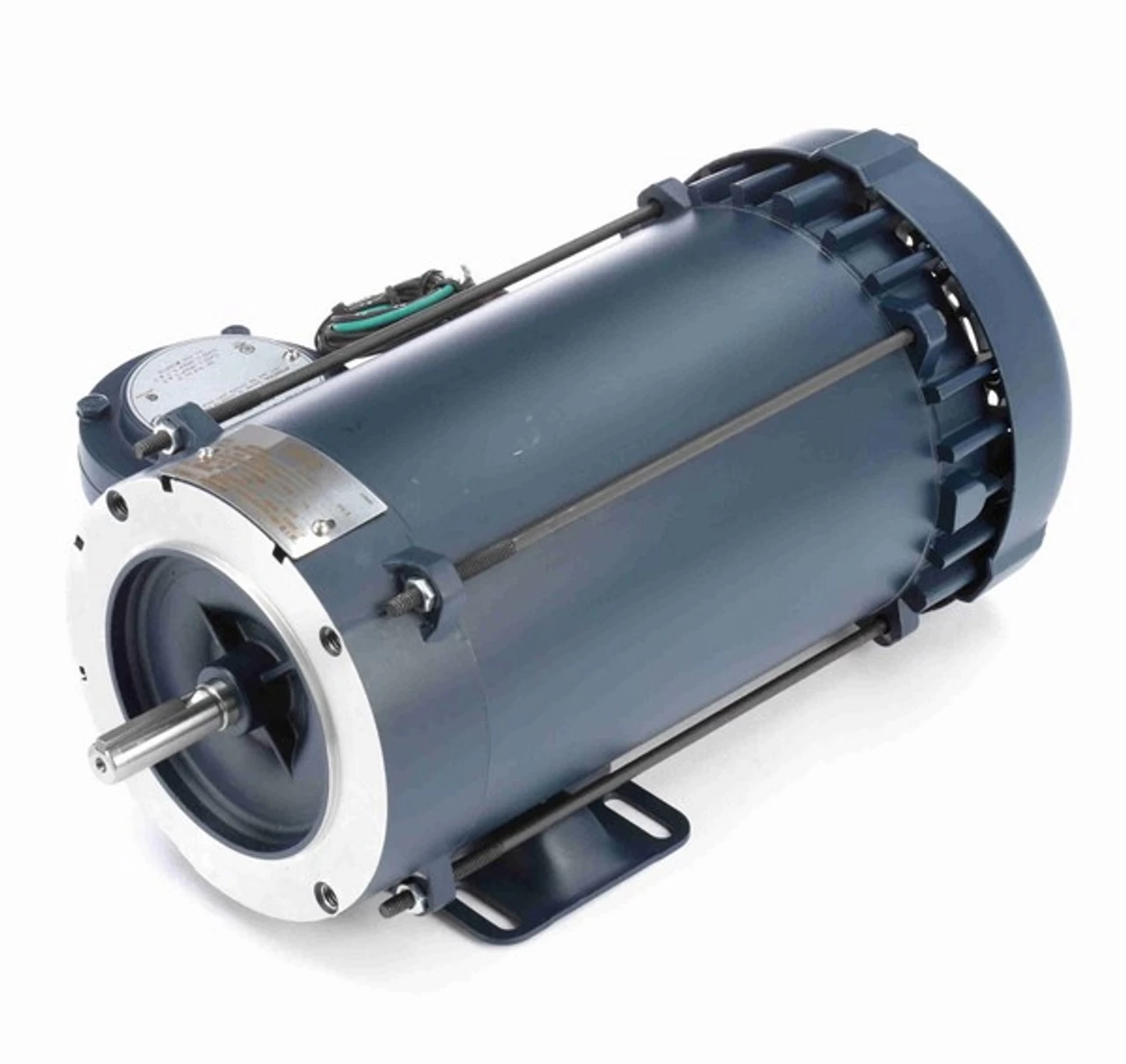

119437.00 Leeson 1 Hp 1800 RPM 230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor - Image 2

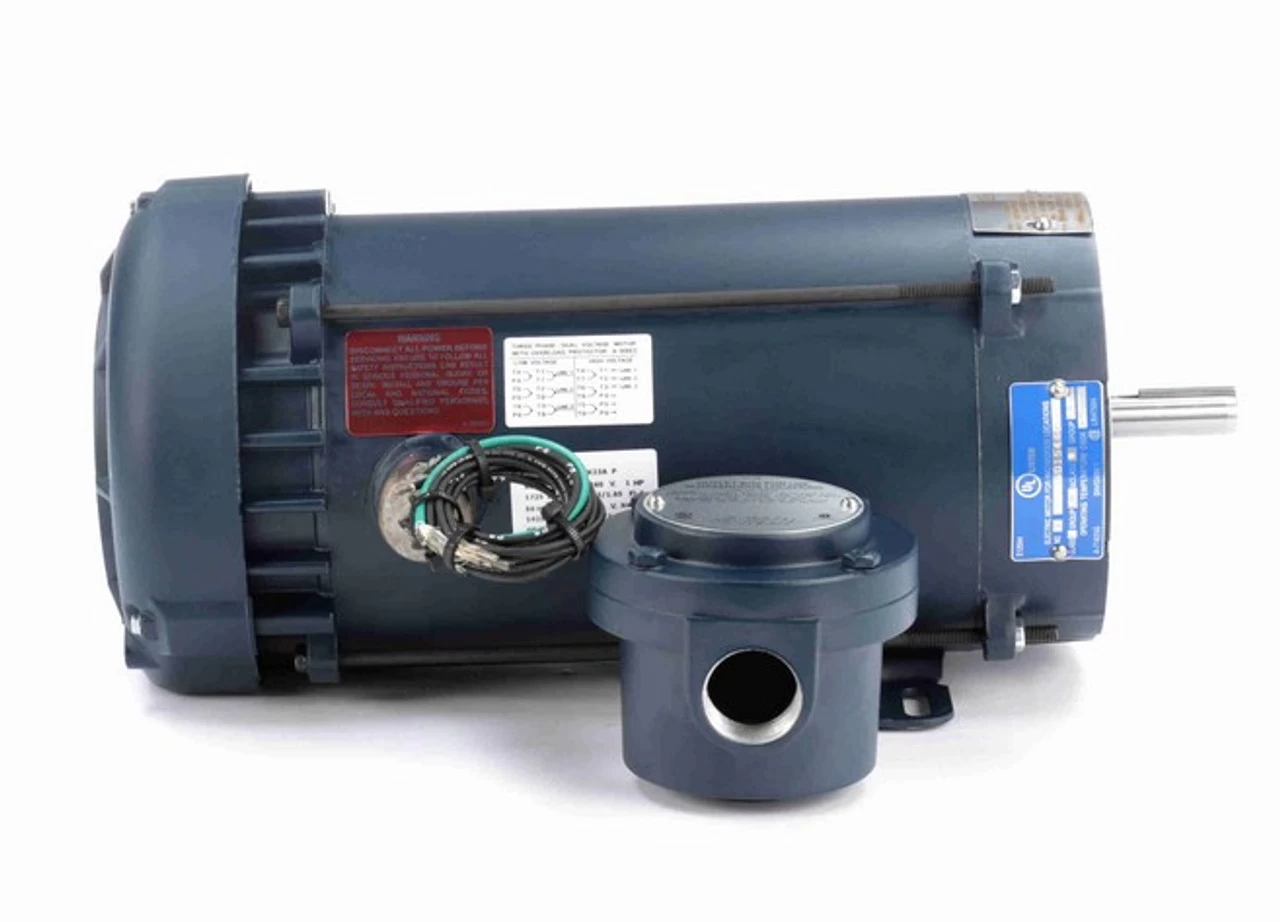

119437.00 Leeson 1 Hp 1800 RPM 230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor - Image 3

119437.00 Leeson 1 Hp 1800 RPM 230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

Original price was: $384.00.Current price is: $97.99.

SKU: ZWXLY 1698655619 Category: Leeson/Marathon Electric Motors Tag: Leeson

Safe Payments, Happy Customers
100% High-Quality Guarantee
Superior Quality Goods
fast shipping

Description
Reviews (0)

1 hp 1800 RPM, 3.3/1.7 amps 230/460 Volts 60 Hz. 3-Phase Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload Protection = Auto
Rigid Base, Reversible, Ball Bearings – Class B Insulation
1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119437.00
