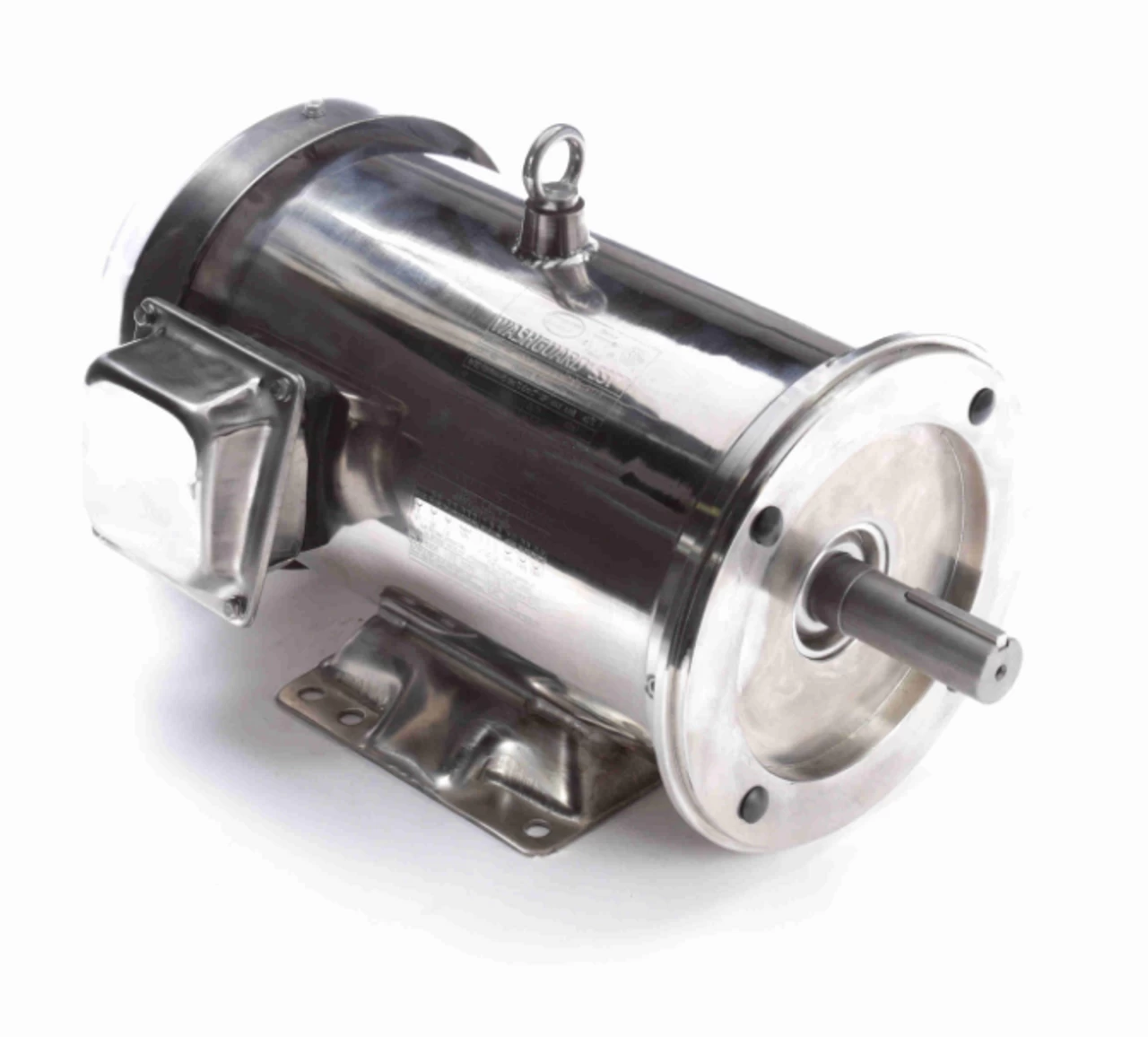

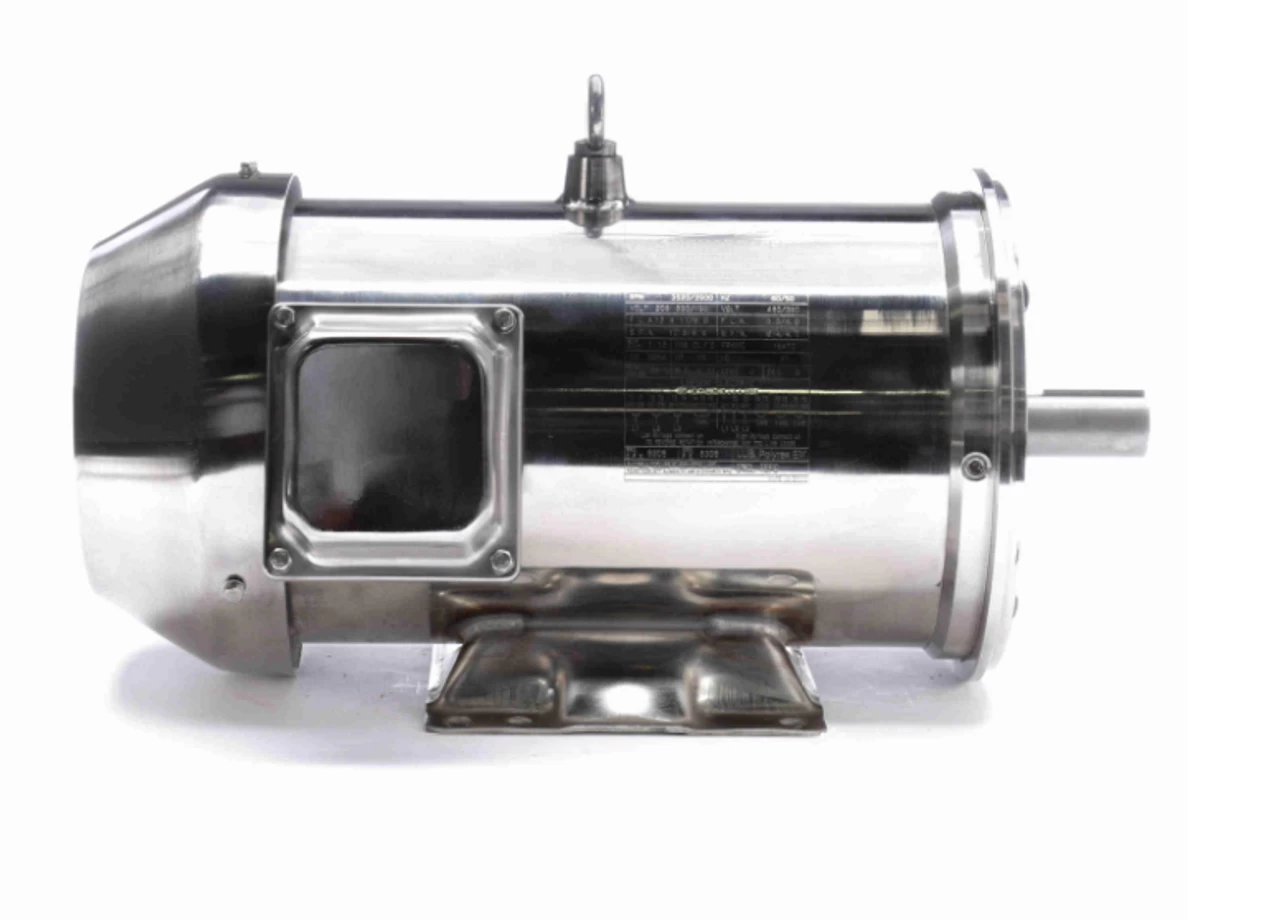

194002.00 Leeson Extreme Duck 5 Hp 3600 RPM 230/460V 3-Phase 184TC Frame TEFC (base) Motor

194002.00 Leeson Extreme Duck 5 Hp 3600 RPM 230/460V 3-Phase 184TC Frame TEFC (base) Motor - Image 2

194002.00 Leeson Extreme Duck 5 Hp 3600 RPM 230/460V 3-Phase 184TC Frame TEFC (base) Motor

Original price was: $377.00.Current price is: $97.99.

SKU: ZWXLY 1698655088 Category: Leeson/Marathon Electric Motors Tag: Nidec

Safe Payments, Happy Customers
100% High-Quality Guarantee
Superior Quality Goods
fast shipping

Description
Reviews (0)

5 hp 3600 RPM, 11.0/5.5 amps 230/460 Volts 60 Hz. Three Phase
NEMA 184TC frame, C-face, Stainless Steel Keyed Shaft 1 1/8″ Diameter x 2 5/8″
Service Factor: 1.15, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 194002.00
