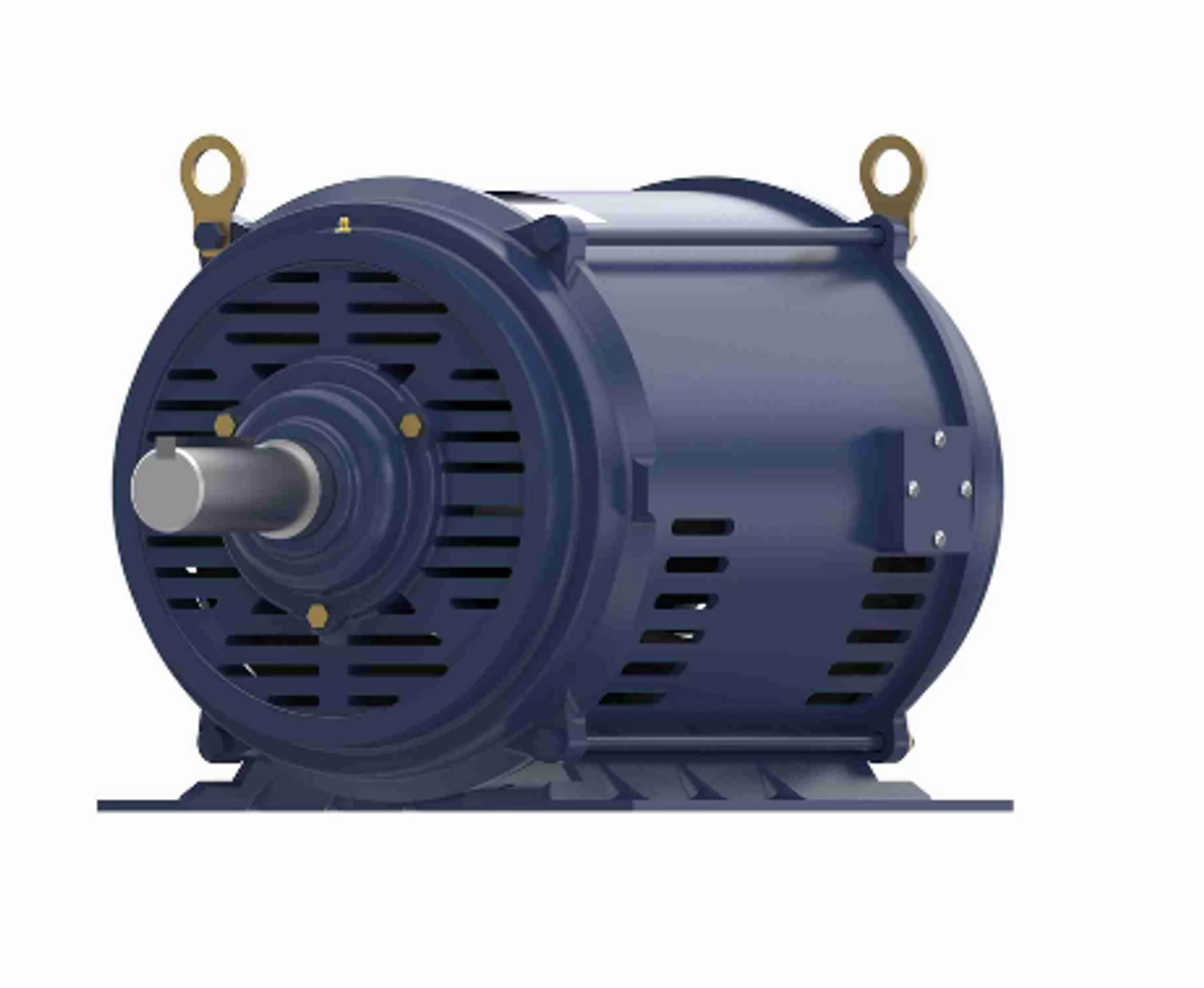

GT0167 Marathon 30 Hp 575V 1800 RPM 3-Phase 286T Frame ODP (rigid Base) Motor
Original price was: $377.00.$98.99Current price is: $98.99.
- Safe Payments, Happy Customers
- 100% High-Quality Guarantee
- Superior Quality Goods
- fast shipping
30 hp 1800 RPM, 29.20 amps 575 Volts 60hz. Three Phase
NEMA 286T frame, Keyed Shaft 1 7/8″ Diameter x 4 5/8″
Service Factor: 1.15, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty
General purpose three phase motor for use in situations not having special requirements. Wiring diagram on motor name plate. ODP = Open Drip Proof. 286TTDBD6030
