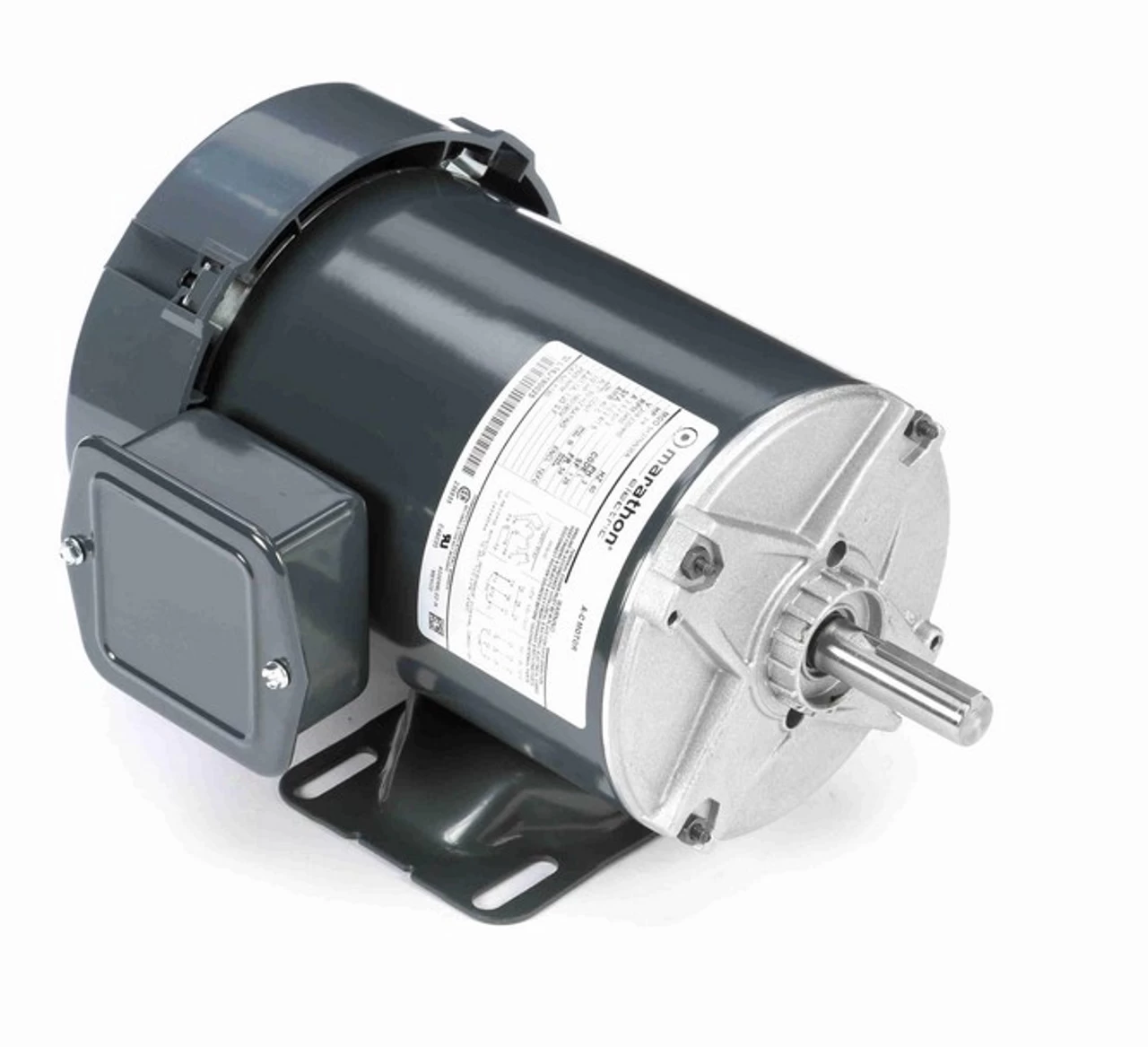

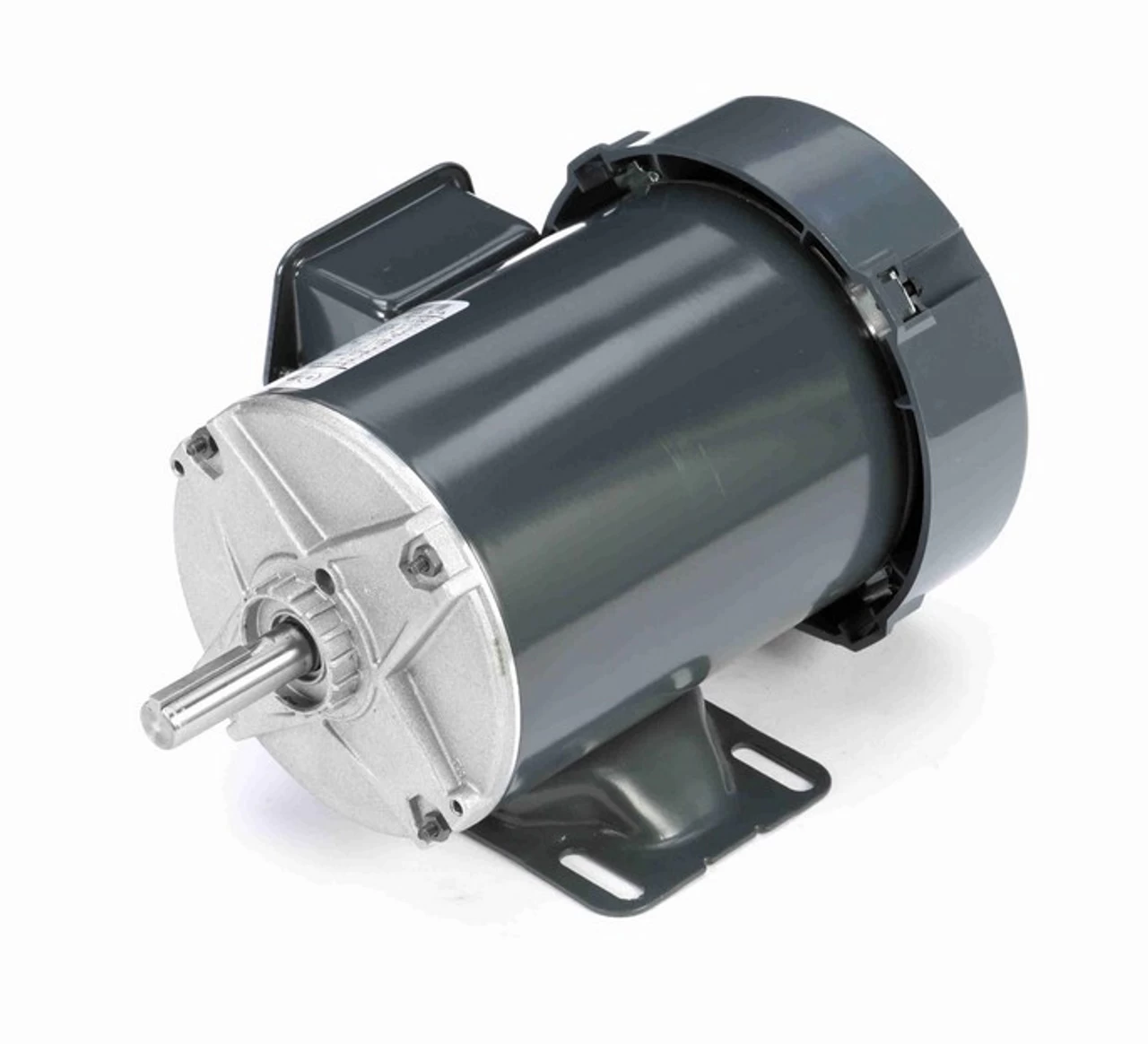

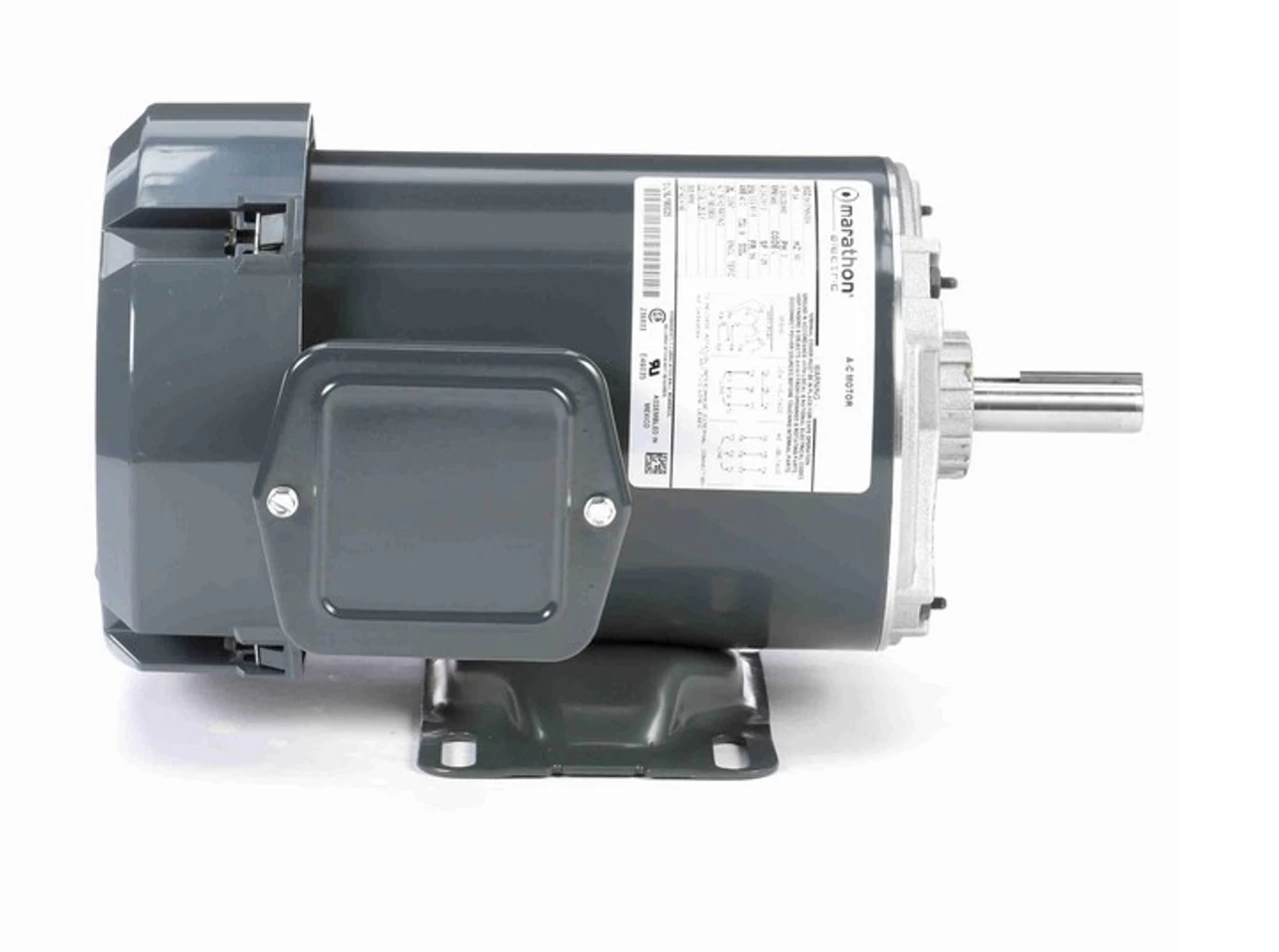

K160 Marathon 3/4 Hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid Base) Motor

K160 Marathon 3/4 Hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid Base) Motor - Image 2

K160 Marathon 3/4 Hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid Base) Motor - Image 3

K160 Marathon 3/4 Hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid Base) Motor - Image 4

K160 Marathon 3/4 Hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid Base) Motor -Electronic Store 160 left 29612.1614109598

K160 Marathon 3/4 Hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid Base) Motor

Original price was: $342.20.Current price is: $98.99.

SKU: ZWXLY 1698655030 Category: Leeson/Marathon Electric Motors Tag: Marathon

Safe Payments, Happy Customers
100% High-Quality Guarantee
Superior Quality Goods
fast shipping

Description
Reviews (0)

3/4 hp 3600 RPM, 2.6-2.5/1.3 amps 208-230/460 Volts 60hz. Three Phase
NEMA 56 frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.25, Thermal Overload Protection: None
Rigid Base, Reversible, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled

Marathon Model:5K37NN30
Replaces Leeson C6T34FB2E, 110313.00
